BDO Filtration & Purification

Process Background

1,4-Butanediol (BDO) is an important basic organic chemical and fine chemical intermediate, widely used in the production of engineering plastics, fibers, and downstream chemical products.

The Reppe process, also known as the acetylene–aldehyde process, is the mainstream industrial route for BDO production. BDO is produced through acetylene-based synthesis followed by hydrogenation reactions.

Role of Filtration in BDO Production

Filtration is a critical process step throughout BDO production, serving multiple functions such as:

• Catalyst separation and recovery
• Removal of solid impurities
• Purification of process fluids and intermediates

Filtration requirements vary across different process stages, but all play a vital role in ensuring process stability, product quality, and operational efficiency.

Automatic Backwashing Filtration for BDO Processes

Automatic backwashing filters are widely applied in BDO filtration and purification due to their reliability and adaptability to complex chemical environments.

Key Features and Advantages

High Level of Automation

• Fully automatic operation and control
• Continuous filtration without process interruption

Enclosed Operation

• Closed system design
• Reduced operator exposure and improved process safety

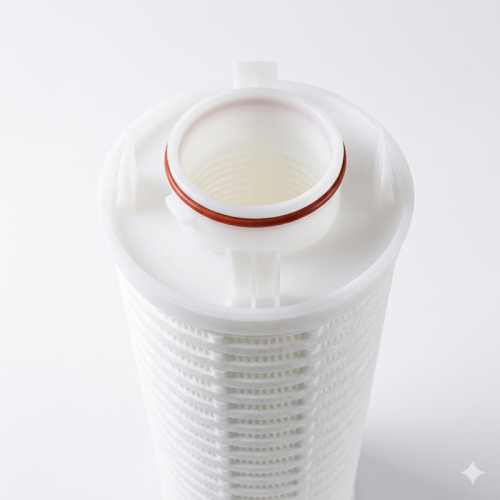

Filtration Elements

Filter elements are designed for high mechanical strength, permeability, and chemical resistance.

A wide range of materials can be selected to suit different process conditions, offering resistance to acids, alkalis, salts, and solvents.

Filter element materials may include:

• Support structure: Stainless steel, titanium (TA), and other alloys
• Filter media: PP, PET, PVDF, PPS, PTFE, stainless steel woven mesh, and other specialty materials

These materials provide long service life under harsh operating conditions.

Easy Installation and Replacement

• Filter media are easy to install and remove
• Minimal downtime during maintenance

Filter Media Regeneration

• Regeneration through gas or liquid backwashing
• Forward and reverse cleaning options available

High Production Efficiency

• High dirt-holding capacity
• Long filtration cycles, reducing cleaning frequency

Low Cleaning Liquid Consumption

• Spray-type cleaning mechanism
• Significantly reduced cleaning fluid consumption

Low Maintenance Cost

• No rotating or moving parts
• Simple structure and low maintenance requirements

Compact Design

• Space-saving configuration
• Small installation footprint

Fine Filtration for BDO Applications

Fine Filtration Requirements

Fine filtration is required in downstream purification stages to further improve material cleanliness and product quality.

• Suitable for fine filtration of BDO and related process fluids
• Typical filtration rating: down to 1 μm

Fine filtration systems are often installed downstream of automatic backwashing filters to provide stable and consistent purification performance.

Typical Filtration Configuration

A typical BDO filtration system may include:

• Automatic backwashing filters for bulk solid removal
• Fine filtration units for polishing and final purification
• Flexible material selection to match specific chemical and process conditions

This staged filtration approach ensures both operational stability and long-term cost efficiency.
