Ink Manufacturing Filtration

Overview of Ink Manufacturing Filtration

In lithographic, flexographic, and gravure printing, achieving consistent print quality remains a major challenge—regardless of whether the ink exhibits thermal offset behavior. Two critical factors dominate ink performance:

• Ink color consistency
• Ink particle size and distribution

Color matching and particle control are often time-consuming and require repeated adjustments, particularly for inks with strict color tolerance requirements. Regardless of ink formulation or composition, printed products must meet stable and repeatable quality specifications, making effective filtration an essential process step in ink manufacturing.

Ink Contamination Sources and Filtration Strategy

Sources of Contamination

Ink contamination can originate from multiple points during production, including:

• Raw material impurities
• Fiber contamination
• Solid and semi-solid agglomerates
• Equipment wear and residue from pipelines and tanks

Due to complex processing and frequent circulation, ink systems typically require continuous or periodic filtration to remove contaminants without damaging pigment integrity.

Filtration Objectives

An effective ink filtration system must:

• Remove unwanted contaminants and foreign particles
• Preserve pigment particles and color concentration
• Maintain ink rheology and print performance
• Support stable, repeatable production batches

Process Challenges in Ink Manufacturing

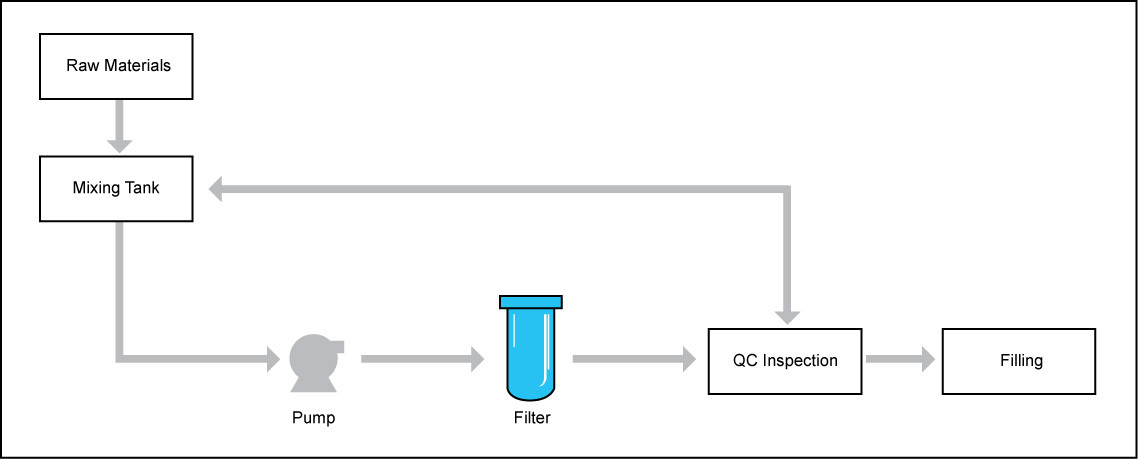

Typical ink manufacturing involves repeated circulation and multiple quality checks to meet color and grinding specifications. In many batch processes:

• Filter elements reach end-of-life at the completion of each batch
• Filters may require replacement even if their service life is not fully utilized
• When switching between different pigment colors, systems must be thoroughly cleaned

This often necessitates:

• Full system flushing
• Filter element replacement
• Use of disposable filtration components

Resulting Issues

• Repeated quality inspections reduce productivity
• Poor equipment utilization lowers manufacturing capacity
• Increased filter consumption and disposal costs
• Higher labor requirements for cleaning and maintenance

Filtration Solutions for Ink Manufacturing

Cartridge Filtration for Pigment Control

Depending on ink color and pigment particle size, single-stage or multi-stage filtration may be required.

• FCN and FCP series cartridge filters are commonly applied
• Multi-layer FCN cartridges feature thicker media structures, enabling effective capture of soft and deformable particles
• Suitable for maintaining pigment integrity while removing foreign contaminants

Mobile Filtration Systems

For ink manufacturers operating with intermittent production and small batch sizes, CMI offers mobile filtration systems designed for flexibility and ease of use.

Key Features:

• Integrated trolley-based design
• Combination of basket filters, bag filters, cartridge filters, and membrane modules
• Compact structure for easy relocation and operation
• Rapid connection to multiple production points

For small and medium-sized ink producers, mobile filtration skids are often the preferred filtration solution.

Specialized Filter Media for Ink Applications

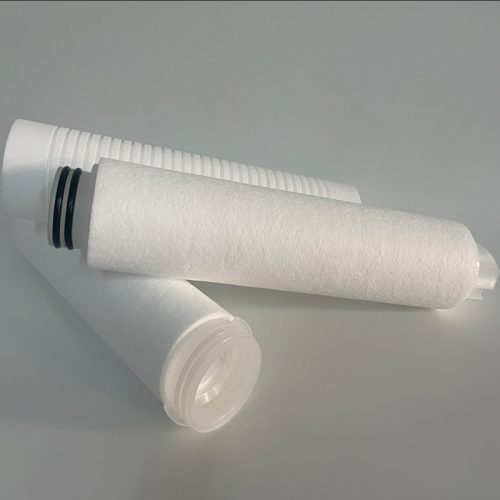

Nylon Melt-Blown Cartridges

• Gradient depth filtration structure
• Extremely low pressure drop
• High filtration efficiency and porosity
• Particularly suitable for inks, paints, and coating materials

Needle-Punched Felt Filter Bags

• Economical disposable filtration media
• Fibers mechanically interlocked through needle-punching
• Thermally treated to eliminate fiber shedding
• Manufactured using heat-sealed or stitched construction
• Widely used in cost-sensitive bag filtration applications

Benefits of Proper Ink Filtration

• Stable color consistency
• Reduced batch-to-batch variation
• Lower operating and disposal costs
• Improved production efficiency
• Enhanced print quality across multiple printing technologies
