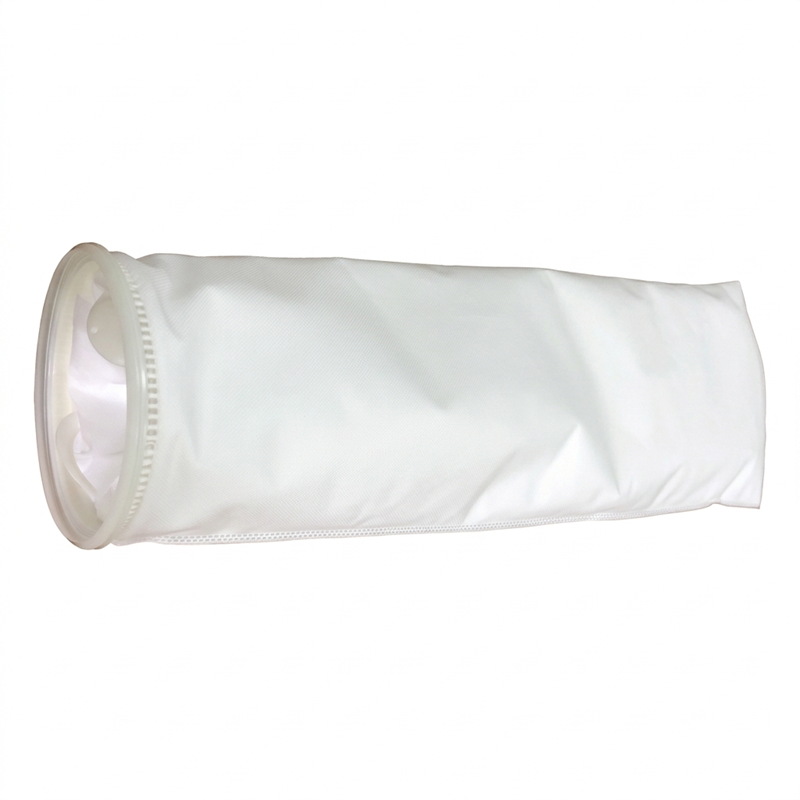

Absolute Rated Heavy Duty Filter Bags-MFB Series

Absolute Rated Heavy Duty Filter Bag – MFB Series

High Dirt Loading | 99% Efficiency | Alternative to FSI POMF Series

Product Overview

The CMI MFB Series Absolute Rated Heavy Duty Filter Bags are designed for applications requiring high filtration efficiency, long service life, and heavy dirt-loading capability.

Constructed with multiple layers of melt-blown polypropylene microfiber, the MFB Series provides absolute-rated performance up to 99% efficiency, making it an excellent and cost-effective alternative to pleated cartridges.

To help customers reduce cost while retaining premium performance, the MFB Series is also engineered as a performance-equivalent alternative to the FSI POMF Series widely used in North America and Europe.

The pure PP construction contains no silicone or binders, making these bags suitable for automotive coating, paint, chemical processing, and other high-purity applications.

Key Features

• Absolute-rated filtration (99% efficiency)
  Effective retention of fine particles across multi-layer melt-blown PP media.
• Heavy duty design for high dirt loading
  Ideal for demanding applications with long service cycles.
• Superior gel removal capability
  Multi-layer microfiber structure breaks and traps gelatinous contaminants that pass through standard felt bags.
• Pure polypropylene construction
  No silicone → safe for paint, coating, automotive lines.
• Available in #1 and #2 sizes
  Suitable for all standard bag filter housings.
• Alternative to FSI POMF Series
  Direct equivalent in performance, construction, and industry application.

Technical Specifications

Material

• Multi-layer Melt-Blown Polypropylene Microfiber

Filter Bag Sizes

• #1 – 7" dia × 17" length
• #2 – 7" dia × 32" length

Absolute Micron Ratings

1, 3, 5, 10, 25, 50, 75, 100 µm

Ordering Code Structure

Example: MFB – 1A – P2E – Max

Material

PP Melt-Blown Microfiber

Micron Rating (Absolute)

1A / 3A / 5A / 10A / 25A / 50A / 75A / 100A

Cover

• P = Plain
• PN = Polypropylene Netting

Size

• 1 = #1
• 2 = #2

Collar

• E = Polypropylene

Suffix

• Max = Heavy Duty / High Dirt Loading Version

Filter Bag Ring Materials

Available ring materials include carbon steel (S), stainless steel (SS), polypropylene (E), polyester (H), and nylon (Z), suitable for different chemical compatibility and operating conditions.
