Bag Filter Skid

Bag Filter Skid Systems

Pre-Assembled, Skid-Mounted Multi-Bag Filtration Solutions

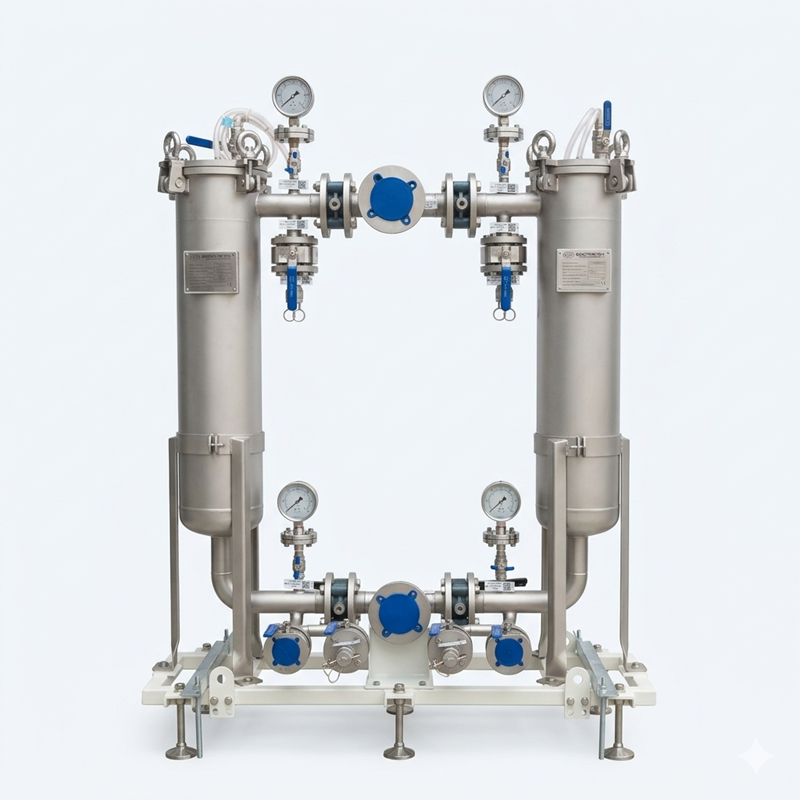

CMI Bag Filter Skid Systems are fully engineered, skid-mounted filtration solutions designed to simplify on-site installation and commissioning of large-capacity bag filtration systems.

Instead of supplying individual bag filter housings, CMI delivers complete filtration skids integrating multi-bag filter vessels, interconnecting piping, valves, drip trays, and structural frames, all pre-assembled and tested before shipment.

At site, customers only need to connect the inlet and outlet pipelines, significantly reducing installation time, labor cost, and commissioning risk.

System Configuration Flexibility

CMI bag filter skids can be configured to meet a wide range of flow rates and redundancy requirements, including:

• 2 × 4 bag filter systems
• 2 × 6 bag filter systems
• 2 × 8 bag filter systems
• 4 × 6 bag filter systems
• Custom configurations based on project requirements

Both parallel operation and duty/standby arrangements are available to ensure continuous operation during bag replacement.

Key Features & Benefits

• Fully skid-mounted and factory assembled
• Plug-and-play design for rapid installation
• Minimal on-site piping, welding, and alignment work
• Consistent system layout and fabrication quality
• Optimized flow distribution across filter vessels
• Easy access for bag replacement and maintenance
• Integrated drainage and spill containment
• Suitable for indoor or outdoor installation

Scope of Supply

Filtration Equipment

• Multi-bag filter housings (carbon steel or stainless steel)
• Compatible filter bags (standard, extended life, absolute-rated, or specialty media)

Piping & Valves

• Pre-fabricated inlet and outlet manifolds
• Isolation valves for each filter vessel
• Drain, vent, and sampling connections
• Valve brands available upon request (EBRO, AVK, or equivalent industrial valves)

Structural & Auxiliary Components

• Heavy-duty skid frame with lifting points
• Integrated drip trays and drainage piping
• Pipe supports and structural brackets
• Optional instrumentation (pressure gauges, DP indicators, transmitters)

Materials of Construction

• Filter Housings & Wetted Parts
  • Carbon steel (painted or epoxy coated)
  • Stainless steel 304 / 316 / 316L
• Piping
  • Carbon steel or stainless steel
  • Flanged or welded connections
• Skid Frame
  • Carbon steel with industrial coating
  • Stainless steel available upon request

Typical Applications

• Industrial process water filtration
• Cooling water and circulating water systems
• Chemical processing and intermediates
• Coating, resin, and ink filtration
• Wastewater and effluent pretreatment
• Power plant and utility filtration
• Large-scale industrial liquid filtration systems

Skid-Mounted vs Site-Assembled Systems

Engineering & Customization Capability

CMI provides full engineering support for bag filter skid systems, including:

• Process flow and capacity evaluation
• Layout and footprint optimization
• Piping and valve selection
• Skid structural design
• Interface definition with upstream and downstream equipment

Each system is engineered to match actual process conditions and project requirements.

Why CMI Bag Filter Skid Systems

• Strong experience in multi-bag filtration systems
• Integrated filtration and mechanical engineering capability
• Flexible configuration and customization
• Reliable manufacturing and quality control
• Reduced installation risk for EPC contractors and end users
