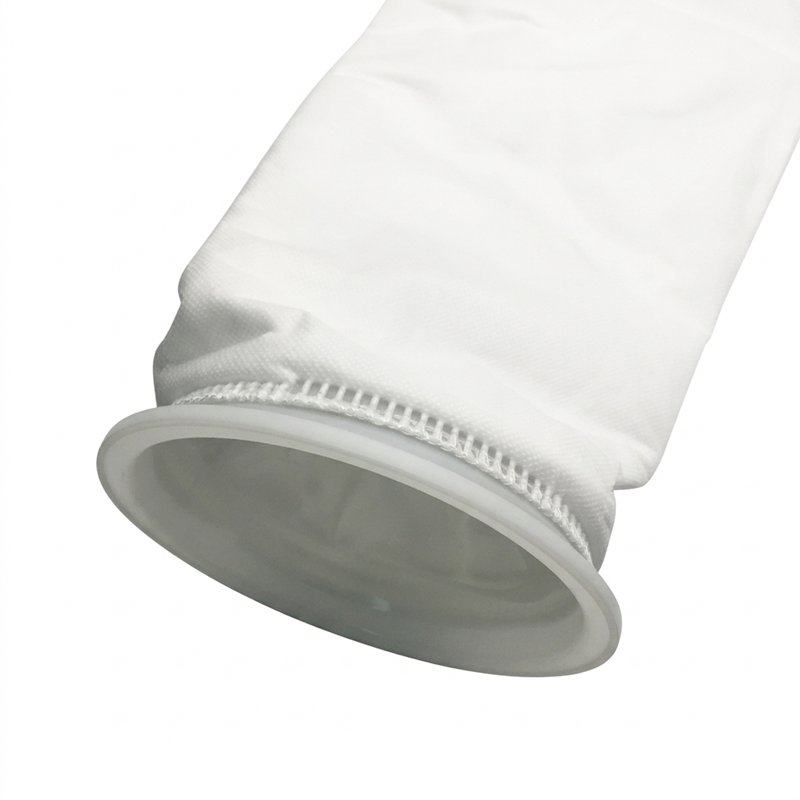

Extended Life Filter Bag Series

Extended Life Filter Bag Series (POXL / PEXL)

Longer Service Life & Higher Dirt-Holding Capacity

Product Overview

CMI’s Extended Life Filter Bags (POXL / PEXL) are engineered with a unique dual-layer needle-felt construction, significantly increasing the dirt-holding capacity without increasing the initial pressure drop.

This design allows the filter bag to last up to five times longer than standard felt bags, reducing both filtration cost and labor cost associated with change-outs.

These bags are available in Polypropylene (POXL) and Polyester (PEXL) to meet different process requirements, including applications requiring improved chemical compatibility or higher temperature resistance.

Extended Life bags are also available in fully welded construction, ensuring leak-free operation and eliminating the possibility of bypass.

Key Features

• Longer lifetime – up to 3–5 times longer
  Dual-layer construction extends service life and reduces replacement frequency.
• High dirt-holding capacity
  Large contaminant load capacity without impacting the initial ΔP.
• Fully welded construction (optional)
  Eliminates sewing holes and ensures zero bypass.
• Reliable performance for demanding processes
  High-quality fiber structure with uniform pore distribution.
• Special surface treatment
  Minimizes fiber shedding and improves downstream cleanliness.
• Suitable for Food & Beverage applications
  Silicone-free materials, consistent quality.

Technical Specifications

Material Choices

• POXL – Polypropylene
• PEXL – Polyester

Micron Ratings

1, 5, 10, 25, 50, 75, 100, 150, 200 µm

Filter Bag Sizes

• #1 – 7" dia × 17" length
• #2 – 7" dia × 32" length
• #3 – 4" dia × 9" length
• #4 – 4" dia × 15" length
• #5 – 6" dia × 20" length

Ordering Code Structure

Filter Bag Ring Materials

Available ring materials include carbon steel (S), stainless steel (SS), polypropylene (E), polyester (H), and nylon (Z), suitable for different chemical compatibility and operating conditions.
