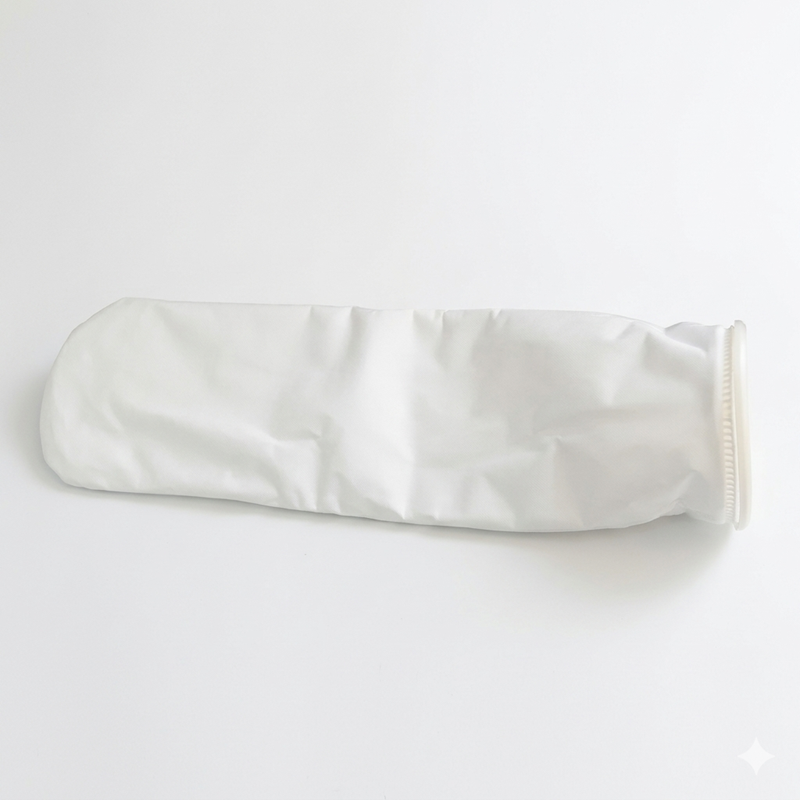

High Efficiency Filter Bag – MLC Series
The CMI MLC Series High Efficiency Filter Bags are designed for applications requiring absolute-rated performance and high particle removal efficiency up to 99%.
Manufactured using multi-layer melt-blown polypropylene microfiber media, these bags achieve exceptional filtration efficiency while maintaining high dirt-holding capacity.
The internal microfiber layers effectively trap fine particles and also capture gelatinous contaminants, making the MLC Series ideal for demanding applications such as coatings, automotive paint, inks, electronics, and high-purity process fluids.
MLC Series is commonly used as a drop-in replacement for Eaton LCR bags.
High Efficiency Filter Bag – MLC Series
Absolute Rated Microfiber Filter Bags for High Purity Applications
Product Overview
The CMI MLC Series High Efficiency Filter Bags are designed for applications requiring absolute-rated performance and high particle removal efficiency up to 99%.
Manufactured using multi-layer melt-blown polypropylene microfiber media, these bags achieve exceptional filtration efficiency while maintaining high dirt-holding capacity.
The internal microfiber layers effectively trap fine particles and also capture gelatinous contaminants, making the MLC Series ideal for demanding applications such as coatings, automotive paint, inks, electronics, and high-purity process fluids.
MLC Series is commonly used as a drop-in replacement for Eaton LCR bags.
CMI offers two performance levels:
MLC-1 Series
Standard absolute-rated bags for fine particle removal.
MLC-5 Series
Advanced multi-layer structure for high dirt loading, longer service life, and superior gel retention.
Key Features
- Absolute filtration rating (up to 99% efficiency)
Multi-layer melt-blown PP captures fine particles with high accuracy. - High dirt-holding capacity
Multiple microfiber layers retain large amounts of contaminants. - Effective gel retention
Designed to break up and trap gelatinous contaminants that pass through standard felt bags. - Long service life
MLC-5 series offers extended lifetime and fewer filter changes. - Silicone-free construction
Safe for paint, coating, and automotive applications requiring zero silicone contamination. - 100% polypropylene microfibers
Provides excellent chemical compatibility and consistent filtration performance.
Technical Specifications
Material
- Polypropylene Microfiber Media
Size Options
- #1 – 7" dia × 17" length
- #2 – 7" dia × 32" length
- #3 – 4" dia × 9" length
- #4 – 4" dia × 15" length
Absolute Micron Ratings
1, 3, 5, 10, 25, 50 µm
Ordering Code Structure
Example: PO – 1 – P1E – M
| Parameter | Options |
|---|---|
| Material | PO = Polypropylene PE = Polyester |
| Micron Rating | 0.5 / 1 / 5 / 10 / 25 / 50 / 100 / 150 / 200 µm |
| Cover | P = Plain PN = Polypropylene Netting |
| Size |
1 = #1 (7" × 17") 2 = #2 (7" × 32") 3 = #3 (4" × 9") 4 = #4 (4" × 15") 5 = #5 (6" × 20") |
| Plastic Collar |
E = Polypropylene H = Polyester N = Nylon EF = FSI Polypropylene Ring HF = FSI Polyester Ring |
| Suffix | M = Modification / Special Construction |
Filter Bag Ring Materials
Available ring materials include carbon steel (S), stainless steel (SS), polypropylene (E), polyester (H), and nylon (Z), suitable for different chemical compatibility and operating conditions.
