Multi-Cartridge Filter

Product Overview

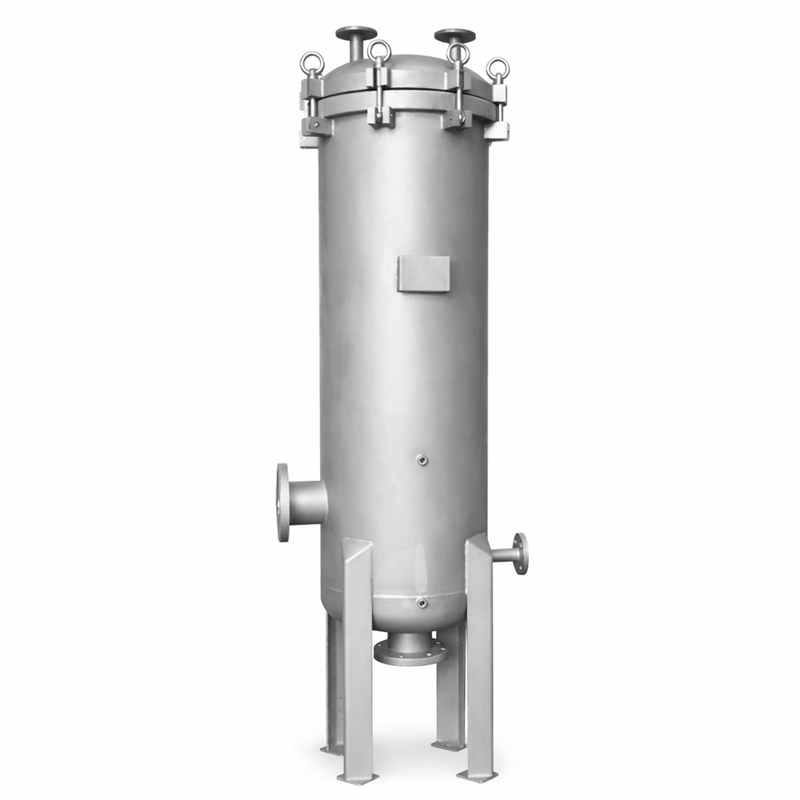

CMI Multi-Cartridge Filter Housings are designed for high-flow industrial liquid filtration, supporting large quantities of filter cartridges within a single pressure vessel.

With configurations ranging from 10 to 280 cartridges, these housings provide an efficient solution for large-scale filtration systems requiring high throughput and reduced footprint.

Multiple opening mechanisms—including quick-opening clamp, eye-bolt, and davit-arm designs—are available to match different safety levels and maintenance frequencies.

Both vertical and horizontal configurations are offered, making this series suitable for water treatment plants, desalination systems, chemicals, electronics, coatings, and other high-volume industrial processes.

All housings can be engineered and fabricated in accordance with ASME Section VIII, Division 1.

Key Features

• Large cartridge capacity
  Supports 10 to 280 cartridges for high-flow industrial applications.
• Flexible vessel configuration
  Available in vertical and horizontal designs to suit installation requirements.
• Multiple opening mechanisms
  Quick-opening, eye-bolt, or davit-arm structures based on operation and safety needs.
• Wide cartridge compatibility
  Compatible with DOE, SOE, and 222 / 226 configurations.
• High-flow performance
  Designed for large-scale systems requiring stable and continuous operation.
• Robust pressure design
  Standard 6–10 bar, with optional designs up to 30 bar.
• Durable stainless steel construction
  Manufactured in SS304 or SS316L for long-term industrial use.
• Easy cleaning and maintenance
  Smooth internal surface finish for hygienic and efficient operation.

Specifications

• Cartridge Length: 10" / 20" / 30" / 40"
• Cartridge Types: DOE, SOE, 222, 226
• Number of Cartridges: 10 – 280
• Design Pressure: 6 / 10 bar (up to 30 bar optional)
• Design Temperature: Up to 120°C
• Material: SS304 / SS316L
• Connections: ANSI / DIN / BSP / JIS
• Surface Finish: Electropolished or shot-blasted

Typical Configuration Range

Flow rate depends on cartridge type, micron rating, and fluid properties.

Options & Accessories

• Differential pressure gauges or transmitters
• Vent and drain valves
• Air release system
• Skid-mounted systems with piping and valves
• Electropolished internal finish (hygienic applications)
• Steam jacket or insulation
• Customized inlet/outlet orientation

Applications

• Desalination and RO plants
• Chemical processing and solvents
• Food and beverage production
• Electronics and ultrapure water systems
• Oil and gas process liquids
• Centralized industrial filtration systems

Why Choose Multi-Cartridge Filter Housing?

Multi-cartridge filter housings are the preferred solution for high-flow systems where efficiency, compact design, and centralized maintenance are critical.

Related Products

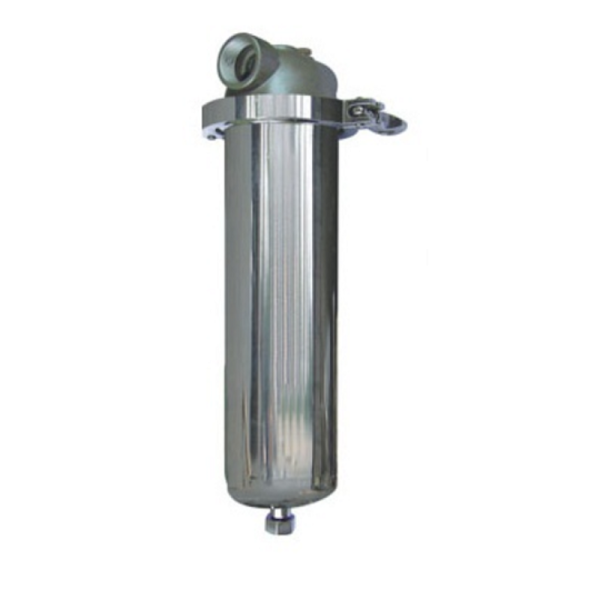

• Single Cartridge Filter Housing
• High Flow Filter Cartridges

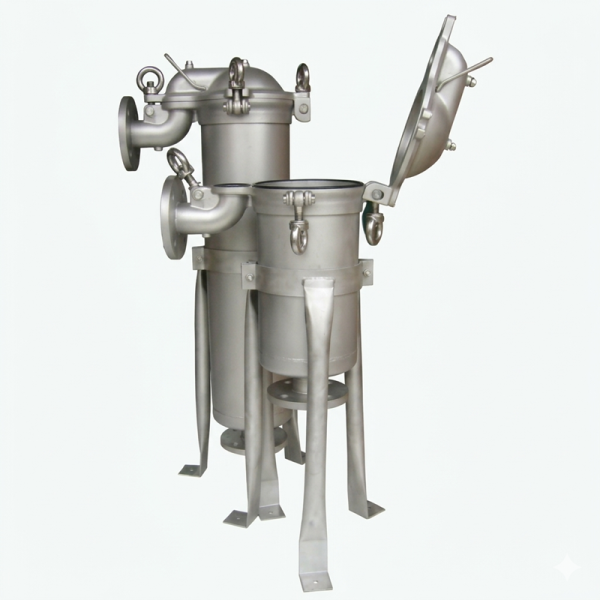

• Bag Filter Housing
