Quick Opening Multi-Bag Filter

Product Overview

The CMI Quick-Opening Multi-Bag Filter Housing is engineered for industrial processes requiring frequent bag replacement, minimal downtime, and efficient maintenance. Featuring a fast-release clamp mechanism and a balanced lid structure, the housing can be opened within seconds, significantly reducing labor intensity and improving operational efficiency.

It is widely used in coatings, inks, resins, chemical processing, RO pre-treatment, and high-flow water treatment systems, where daily filter bag replacement is required.

The pressure vessel can be designed and manufactured in accordance with ASME Section VIII, Division 1 upon request.

Key Features

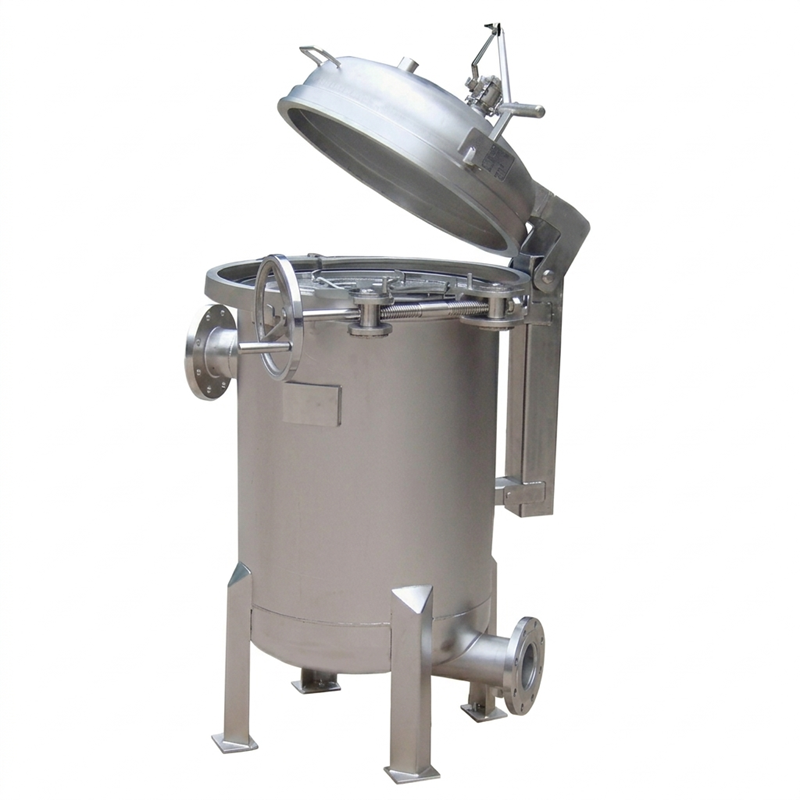

• Quick-opening balanced lid design
  Open and close the housing within seconds, ideal for high-frequency bag change applications.
• Fast clamp closure (V-clamp mechanism)
  Ensures uniform sealing with tool-free operation, combining safety and efficiency.
• Single-operator handling
  Balanced lid allows one operator to safely open and close the housing without heavy lifting.
• Optimized for continuous operation
  Reduces downtime and improves maintenance efficiency in high-flow systems.
• Vertical top opening design
  Compact footprint, suitable for space-constrained installations.
• Universal filter bag compatibility
  Compatible with standard Size 1 and Size 2 filter bags (metal or plastic ring).
• Reinforced interlocked structure
  Stable performance under fluctuating pressure and long-term industrial operation.

Specifications

Options

• Steam jacket or insulation
• Hygienic tri-clamp configuration for food & beverage applications
• Custom inlet / outlet orientation
• JIS / DIN flange connections

Accessories

• Magnetic bar for metallic particle removal
• Mesh basket to convert housing into basket strainer
• Displacement balloon for easier bag replacement
• Differential pressure gauge or transmitter

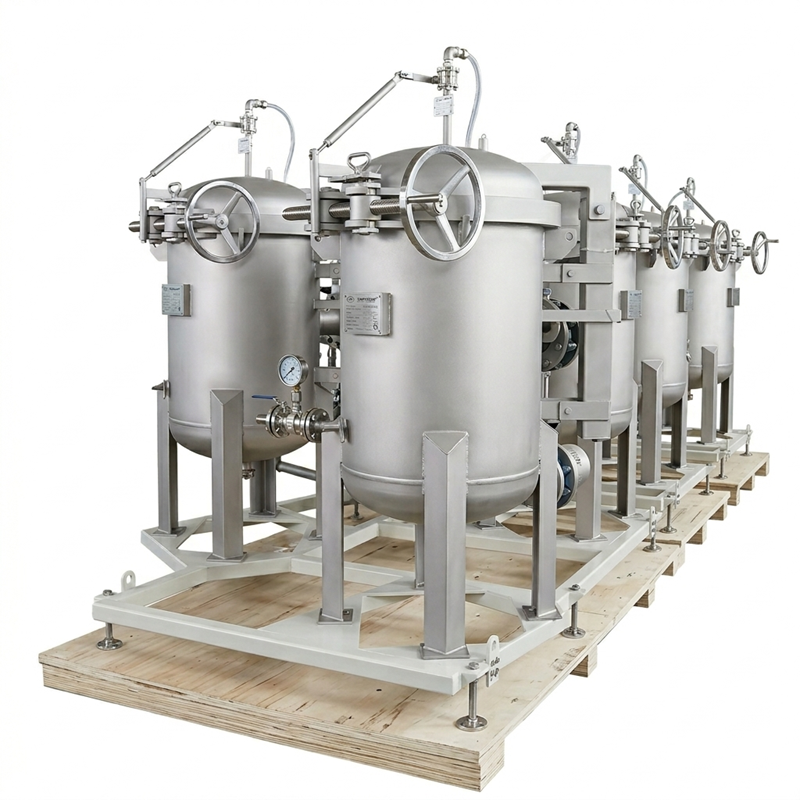

• Pump integration (skid-mounted systems available)

Applications

• Chemical Processing
• Pharmaceutical
• Food & Beverage
• Paint & Coatings
• Automotive Coating
• Oil Refining
• Marine Industry
• Water Treatment

Why Choose Quick-Opening Design?

Quick-opening design is the optimal solution for high-efficiency systems requiring frequent filter bag replacement.
