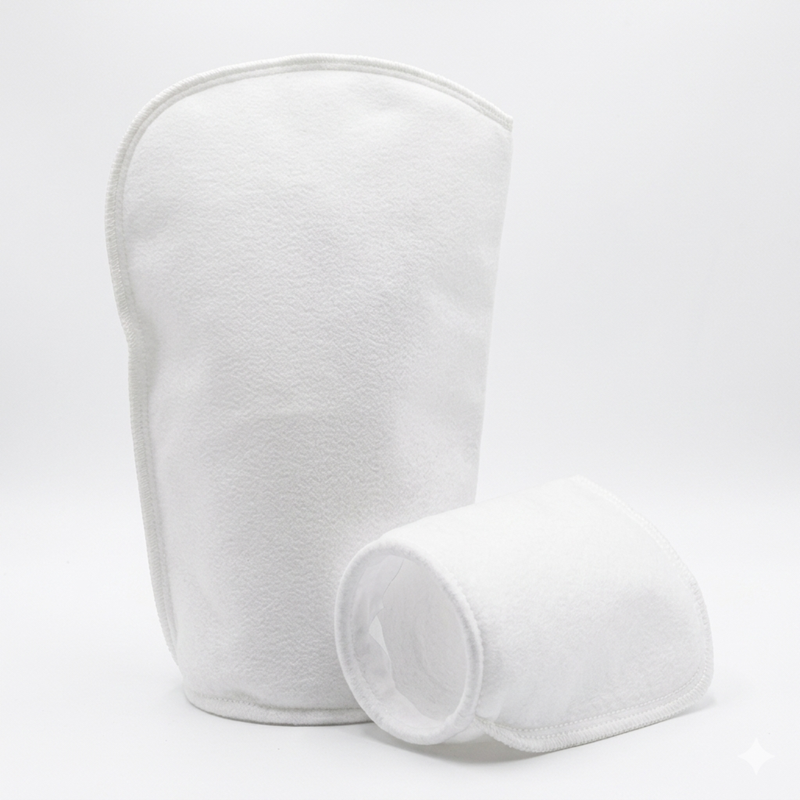

Sewn Steel Ring Filter Bag Series
The Sewn Ring Filter Bag Series from CMI provides a cost-effective solution for general industrial liquid filtration.
These bags are constructed using silicone-free needle felt or NMO monofilament mesh, and stitched with heavy-duty industrial sewing thread to ensure consistent performance in everyday filtration applications.
A steel ring (standard) or stainless-steel ring (for corrosive fluids) is sewn into the top of the bag to maintain dimensional stability and provide reliable sealing in most standard bag filter housings.
Available in a wide range of materials and micron ratings, sewn ring bags remain the most commonly used filter bags across various industries.
Steel Ring Sewn Filter Bag Series
Economical & Reliable Sewn Filter Bags for General Industrial Filtration
Product Overview
The Sewn Ring Filter Bag Series from CMI provides a cost-effective solution for general industrial liquid filtration.
These bags are constructed using silicone-free needle felt or NMO monofilament mesh, and stitched with heavy-duty industrial sewing thread to ensure consistent performance in everyday filtration applications.
A steel ring (standard) or stainless-steel ring (for corrosive fluids) is sewn into the top of the bag to maintain dimensional stability and provide reliable sealing in most standard bag filter housings.
Available in a wide range of materials and micron ratings, sewn ring bags remain the most commonly used filter bags across various industries.
Key Features
- Economical and widely applicable
Ideal for general-purpose filtration across all industries. - Heavy-duty sewn construction
Provides reliable strength and durability for typical liquid filtration needs. - Multiple media options
PO and PE felt, Nomex felt, PTFE felt, and NMO monofilament mesh. - Steel ring or stainless-steel ring
Ensures top opening stability; SS option available for corrosive or high-purity applications. - Compatible with all standard bag filter housings
Available in sizes #1, #2, #3, #4, and #5. - Custom diameters available
Designed to fit non-standard housings when required.
Technical Specifications
Material Options
- Polypropylene (PO) Felt
- Polyester (PE) Felt
- Nomex (Aramid) Felt
- PTFE (Teflon) Felt
- Nylon Monofilament (NMO) Mesh
Micron Ratings
PO, PE, Nomex
1, 5, 10, 25, 50, 75, 100, 150, 200 µm
PTFE (Teflon Felt)
1, 5, 10 µm
NMO Mesh
25, 50, 80, 100, 125, 150, 200, 250, 300, 400, 600, 800, 1000 µm
Filter Bag Sizes
- #1 – 7" dia × 17" length
- #2 – 7" dia × 32" length
- #3 – 4" dia × 9" length
- #4 – 4" dia × 15" length
- #5 – 6" dia × 20" length
Ordering Code Structure
Example: PO – 1 – P1E – M
| Parameter | Options |
|---|---|
| Material | PO = Polypropylene PE = Polyester |
| Micron Rating | 0.5 / 1 / 5 / 10 / 25 / 50 / 100 / 150 / 200 µm |
| Cover | P = Plain PN = Polypropylene Netting |
| Size |
1 = #1 (7" × 17") 2 = #2 (7" × 32") 3 = #3 (4" × 9") 4 = #4 (4" × 15") 5 = #5 (6" × 20") |
| Plastic Collar |
E = Polypropylene H = Polyester N = Nylon EF = FSI Polypropylene Ring HF = FSI Polyester Ring |
| Suffix | M = Modification / Special Construction |
Filter Bag Ring Materials
Available ring materials include carbon steel (S), stainless steel (SS), polypropylene (E), polyester (H), and nylon (Z), suitable for different chemical compatibility and operating conditions.
