Single Bag Filter – SF Series（Side Inlet / Eye-Bolt）

Product Overview

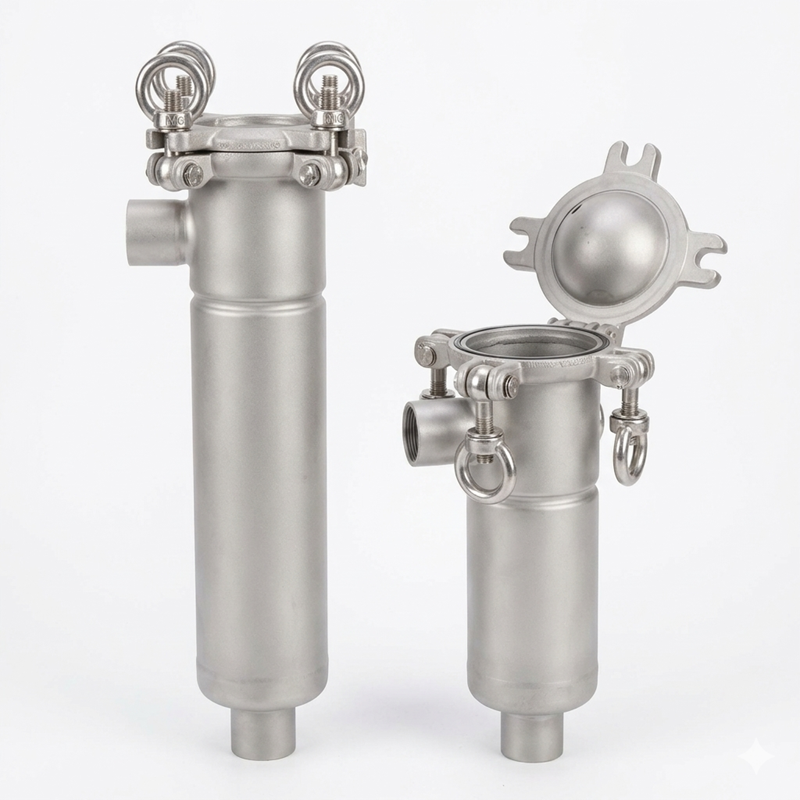

The CMI SF Series Side Inlet Single Bag Filter Housing is an industrial-grade filtration vessel designed for applications requiring higher pressure resistance, improved mechanical stability, and reliable long-term sealing performance.

Compared with the EF Series (economic V-clamp design), the SF Series features a robust eye-bolt closure structure and a side-inlet / bottom-outlet flow configuration, ensuring enhanced durability and consistent operation under varying pressure and flow conditions.

The housing is available in Size 1 / 2 / 3 / 4 configurations, with pressure ratings up to 10 bar (Size 1 & 2) and up to 21 bar (Size 3 & 4), making it suitable for a wide range of industrial processes.

It represents the standard industrial solution where both cost efficiency and mechanical strength are required.

Key Features

• Industrial eye-bolt closure design
  Provides stable and uniform sealing for long-term operation.
• Higher pressure capability
  Up to 21 bar, significantly stronger than V-clamp type housings.
• Side-inlet / bottom-outlet configuration
  Ensures smooth flow distribution, reduced pressure drop, and complete drainage.
• Robust stainless steel construction
  Manufactured in SS304 / SS316L, with optional ASME Section VIII compliance.
• Reliable sealing system
  Viton profile gasket ensures consistent sealing performance.
• Universal filter bag compatibility
  Suitable for Size 1–4 filter bags with metal or plastic rings.
• Easy maintenance
  Shot-blasted surface finish simplifies cleaning and inspection.

Specifications

• Bag Sizes: Size 01 / 02 / 03 / 04
• Design Pressure:
  Size 01 / 02 → 10 bar
  Size 03 / 04 → 21 bar
• Design Temperature: Up to 120°C
• Material: SS304 / SS316L
• Gasket Options: Buna / EPDM / Viton / PTFE / Viton+PTFE
• Connections: BSP female or flange
• Surface Finish: Shot-blasted (internal & external)

Technical Data — SF Series Single Bag Filter Housing

Flow rate is based on water (1 cP). Actual performance may vary depending on fluid viscosity and filtration conditions.

Options & Accessories

• Magnetic inserts
• Mesh-lined support baskets
• Filter bag liners
• Differential pressure gauges or transmitters
• Steam jacket or insulation

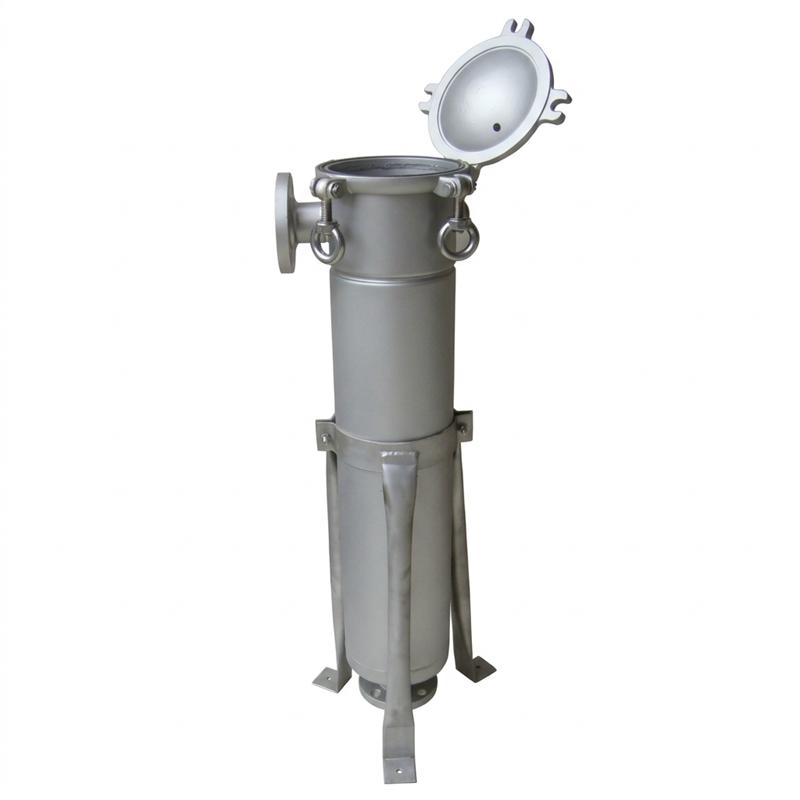

• Wall-mounted or floor stand support

Applications

• Industrial water filtration
• Chemical batch processing
• Solvents and hydrocarbons (low viscosity)
• Resin filtration
• Paints, inks, and coatings
• Cooling water and utility systems
• Metalworking fluids and parts washing

Why Choose SF Series?

SF Series is the standard industrial single bag filter housing, offering a balanced combination of cost, strength, and reliability.
