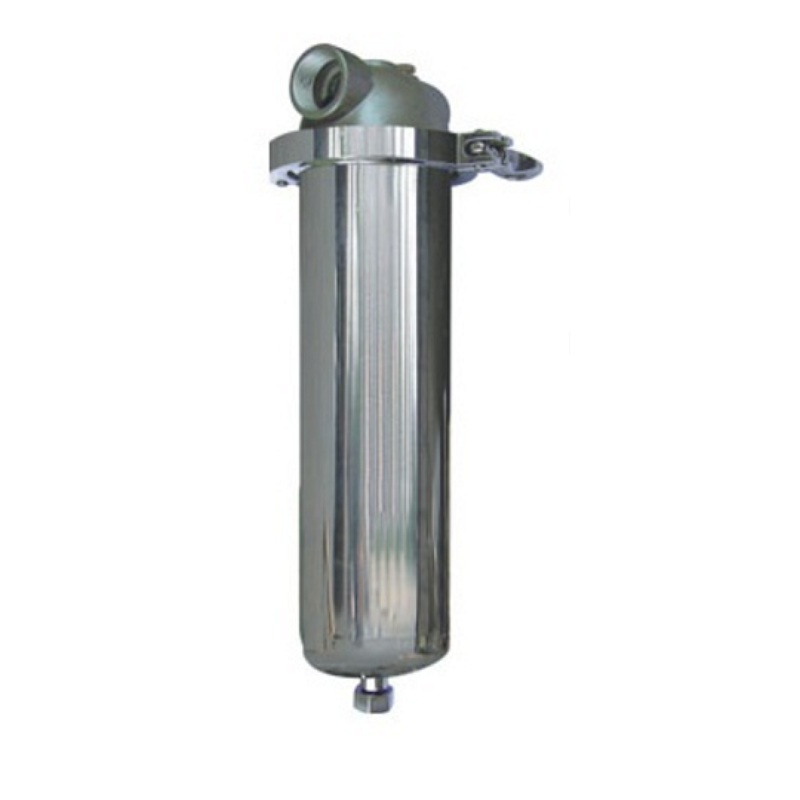

Single Cartridge Filter

The CMI Single-Cartridge Filter Housing is a compact and economical solution for low-flow industrial liquid filtration.
Designed for DOE or SOE cartridges up to 30 inches, it is suitable for OEM skids, lab-scale filtration, point-of-use systems, and light industrial applications.

Category:

Product Overview

The CMI Single-Cartridge Filter Housing is a compact and economical solution for low-flow industrial liquid filtration. Designed for DOE or SOE filter cartridges up to 30 inches in length, it is ideal for OEM skids, laboratory systems, pilot plants, point-of-use filtration, and other light industrial applications. Its simple stainless-steel construction ensures reliable performance, easy maintenance, and convenient integration into compact process systems. ASME Section VIII design and fabrication are available upon request.

Key Features

  • Compact and economical design An ideal choice for low-flow and point-of-use liquid filtration.
  • Simple operation Easy cartridge replacement and straightforward daily maintenance.
  • Flexible cartridge compatibility Suitable for DOE and SOE cartridges from 10" to 30".
  • Stainless steel construction Available in SS304 or SS316L for reliable industrial performance.
  • OEM-friendly configuration Well suited for skid integration, pilot equipment, and compact systems.
  • Easy-to-clean internal surface Electropolished finish helps improve cleanliness and maintenance efficiency.

Specifications

  • Cartridge Length: 10" / 20" / 30"
  • Cartridge Type: DOE / SOE
  • Connections: BSP / NPT
  • Design Pressure: 6 bar
  • Material: SS304 / SS316L
  • Surface Finish: Electropolished

Typical Configuration

Configuration Cartridge Length Cartridge Type Connection Pressure
Single cartridge housing 10" / 20" / 30" DOE / SOE BSP / NPT 6 bar
Actual flow rate depends on cartridge type, micron rating, and liquid properties.

Options & Accessories

  • Pressure gauge
  • Vent and drain valves
  • Mounting bracket
  • Customized connection type
  • SS316L construction

Applications

  • Laboratory systems and pilot plants
  • Water treatment polishing
  • Chemical dosing and feed systems
  • Cooling tower dosing loops
  • Point-of-use liquid filtration
  • Small OEM process skids

Why Choose Single-Cartridge Filter Housing?

Feature Single-Cartridge Housing
Flow Capacity Low
Footprint Very compact
Cost Level Economical
Maintenance Simple and fast
Best For Low-flow, OEM, lab, and point-of-use filtration
Single-cartridge filter housings are the practical choice for compact systems where low flow, simple operation, and cost-effective filtration are the main priorities.
