Sintered Metal Fiber Filter

Sintered Metal Fiber Filter

High-Porosity Filtration Media for High Flow and Low Pressure Drop Applications

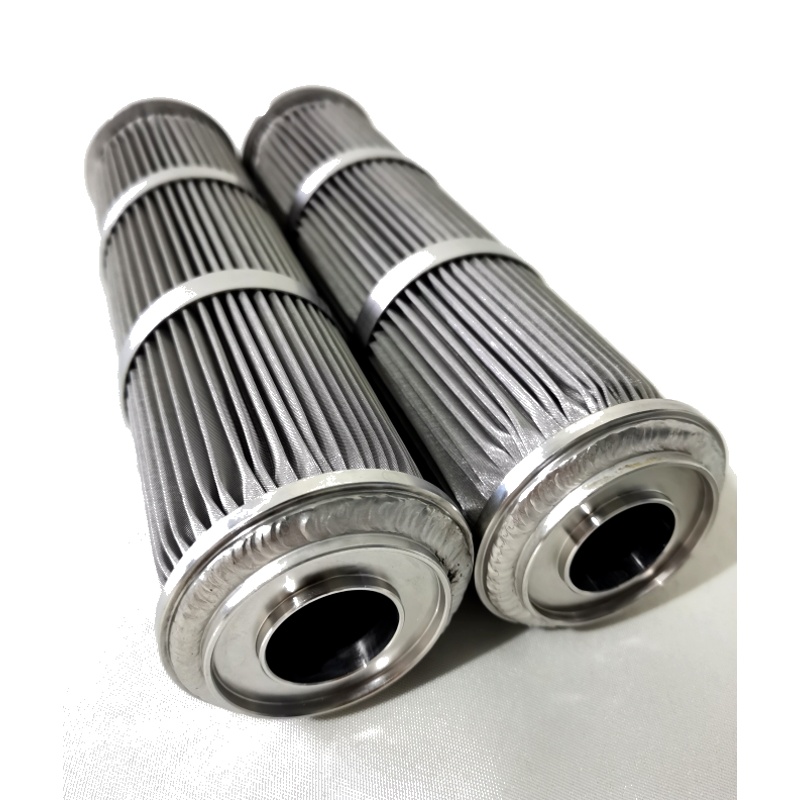

CMI sintered metal fiber filters are manufactured by layering non-woven metal fibers and bonding them through high-temperature vacuum sintering, forming a highly porous and uniform filtration structure.

This structure provides extremely high porosity, narrow pore size distribution, and stable performance under high temperature and pressure conditions. Compared to powder and mesh structures, sintered metal fiber media offers significantly higher permeability and lower pressure drop, making it especially suitable for high flow and gas filtration applications.

The material can be fabricated into cartridges, discs, sheets, plates, tubes, and pleated elements, allowing flexible design for a wide range of liquid and gas filtration systems.

Key Features & Benefits

• High dirt-holding capacity
• Very high porosity with excellent permeability
• Low pressure drop and high flow capability
• Excellent resistance to corrosion and high temperatures
• Narrow and consistent pore size distribution
• Strong and stable structure due to sintering
• Fully cleanable for repeated use
• Suitable for welding, machining, folding, and pleating

Technical Specifications

• Shapes: Discs, sheets, plates, tubes, pleated cartridges, custom geometries
• Cartridge Diameter: 20 – 1000 mm
• Filtration Rating (Liquid): 5 – 200 μm
• Filtration Rating (Gas): up to 1 μm
• Structure: Multi-layer sintered metal fiber media

Available Materials

• Stainless Steel: SS316L, SS304
• Optional Alloys: Available upon request for specific chemical or high-temperature conditions

Typical Applications

• Liquid and gas purification
• Solid particle separation and recovery
• High-temperature transpiration cooling systems
• Noise reduction and silencing equipment
• Fluidized bed processes
• Chemical fiber filtration
• Chemical and petrochemical processing
• High-viscosity or high-temperature fluid filtration
