Sintered Metal Mesh Components

Sintered Metal Mesh Components

Diffusion-Bonded Multi-Layer Mesh for High-Strength, Surface Filtration and Backwashable Applications

CMI sintered metal mesh components are manufactured by stacking multiple layers of woven wire mesh and bonding them through high-temperature diffusion sintering.

This process creates a rigid, porous laminate with controlled pore structure, high mechanical strength, and excellent permeability, making it ideal for high-pressure, high-temperature, and backwashable filtration systems.

Compared to conventional woven mesh or powder-sintered materials, sintered mesh components provide superior dimensional stability, consistent surface filtration, and long service life in demanding industrial environments.

Key Features

• Multi-layer diffusion-bonded structure for enhanced strength
• Precise surface filtration from 2 to 200 μm
• High permeability with low pressure drop
• Excellent resistance to pressure shock and vibration
• Outstanding thermal stability up to 600°C (depending on alloy)
• Fully backwashable and reusable
• Stable pore structure — no deformation under load
• Resistant to corrosion and aggressive process fluids
• Available in multi-layer configurations (3–7 layers)

Available Materials

• Stainless Steel: 316L / 304 / 310S / 904L
• Duplex Stainless Steel: 2205 / 2507 (optional)
• Inconel: 600 / 625 / 800
• Monel: 400
• Hastelloy: C-22 / C-276
• Titanium: for highly corrosive applications

Structure Options

• Single-layer woven wire mesh
• Standard five-layer sintered mesh laminate:
  • Protection layer
  • Control layer
  • Support mesh
  • Reinforcement layers
• Customized multi-layer laminates (3–7 layers)
• Mesh + perforated plate composite structures for high-flow applications

Shapes & Dimensions

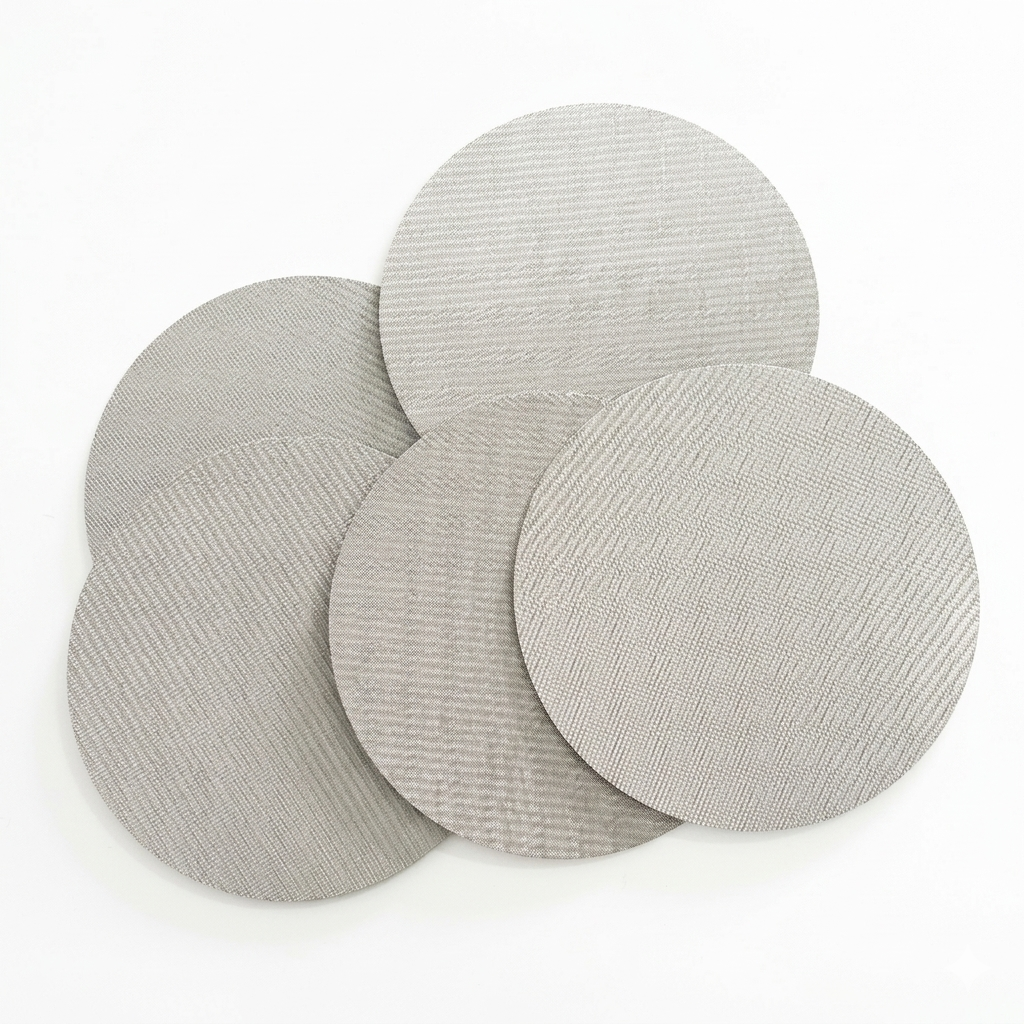

Sintered Mesh Discs & Rings

• Custom outer diameters
• Thickness: 0.5 – 3 mm
• Round, square, or irregular shapes
• Laser cutting and CNC machining available

Sintered Mesh Tubes / Cylindrical Elements

• Custom diameters and lengths (up to 1000 mm)
• Welded or seamless structures
• Suitable for candles, cartridges, and strainers

Sintered Mesh Plates / Panels

• Flat, corrugated, or pleated formats
• Used for filtration units and gas distribution plates

Conical & Welded Assemblies

• Cones, frustums, transition components
• Mesh + perforated plate composite assemblies

Pleated Mesh Filter Elements

• Large filtration surface area
• Suitable for high-viscosity fluids, polymers, and resins
• Excellent backwash and cleaning performance

Typical Applications

Chemical & Petrochemical

• Polymer melt filtration
• High-viscosity liquid filtration
• Catalyst protection and recovery
• Solvent and process fluid filtration

Oil & Gas

• Sand control screens
• Downhole tool protection
• High-pressure strainers

Industrial Filtration

• Backwashable filter cartridges
• Hydraulic and lubrication systems
• High-load filtration applications

Thermal & Process Systems

• Hot gas and steam filtration
• Furnace exhaust protection
• Heat-resistant structural filtration

Mechanical & Instrumentation

• Support layers for composite filters
• Precision surface filtration
• Pressure-resistant screens

Customization & OEM Services

• Custom mesh layer configurations
• Tailored pore size (2–200 μm)
• Custom OD / ID / thickness
• Perforated plate + mesh composite design
• Complex geometries: cone, tube, pleated structures
• Welding, CNC machining, and laser cutting
• OEM labeling and bulk production

Why Choose CMI

• Extensive experience in multi-layer mesh diffusion bonding
• Stable and reliable performance in industrial environments
• Engineering capability for ΔP and flow optimization
• Strong support for custom-designed assemblies
• Consistent quality with fast lead times
