Sintered Metal Pleated Filter

Sintered Metal Pleated Filter

High Surface Area Filtration for High Flow and Compact System Design

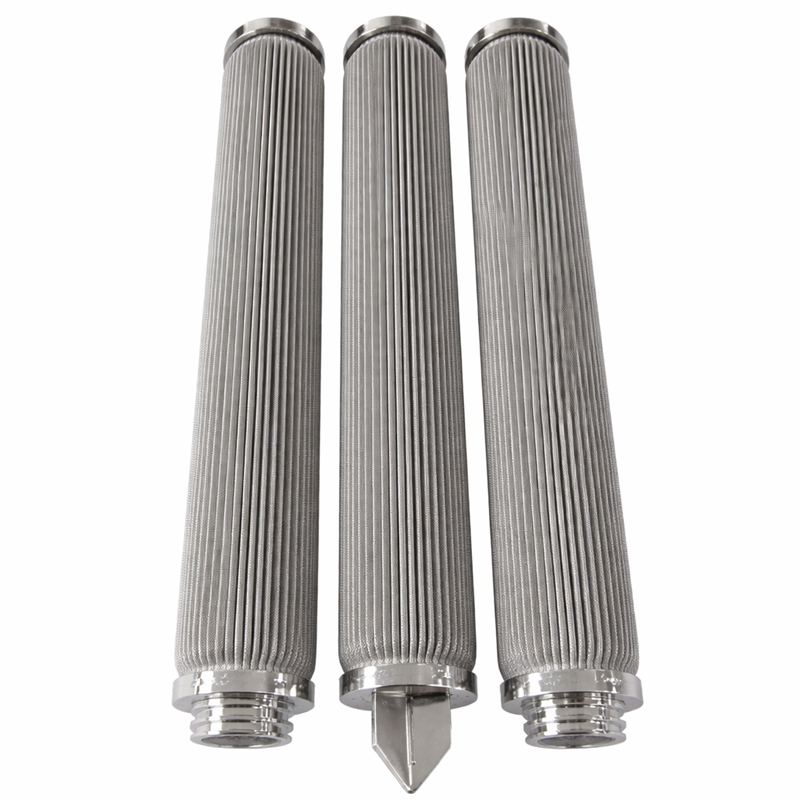

CMI sintered metal pleated filters are high-efficiency filtration elements manufactured by pleating multi-layer sintered metal mesh or sintered metal fiber media.

The pleated structure significantly increases the effective filtration surface area, allowing higher flow rates, lower pressure drop, and longer service life compared to conventional cylindrical filter elements.

By increasing filtration area within the same volume, pleated filters enable the use of smaller housings, reducing equipment footprint and overall system cost.

The filter media is bonded through high-temperature vacuum sintering, ensuring excellent mechanical strength, thermal resistance, and long-term stability under high pressure, high temperature, and high-viscosity conditions.

Key Features & Benefits

• Large filtration area due to pleated structure
• High flow rate with low pressure drop
• High dirt-holding capacity and extended service life
• Excellent resistance to temperature and corrosion
• Reusable via backwashing, ultrasonic, or chemical cleaning
• Available in both mesh-based and fiber-based media
• Strong mechanical strength and dimensional stability
• Suitable for high-pressure and high-viscosity applications
• Flexible fabrication into cartridges and custom geometries

Technical Specifications

• Outside Diameter (OD): 20 mm, 30 mm, 50 mm (customizable)
• Length: 10", 20", 30", 40", 50", 60", 70" (customizable)
• Filtration Rating: 1 – 300 μm
• Operating Temperature: –269°C to 480°C
• Dirt Holding Capacity: 16.9 – 41 mg/cm²
• End Connections: 222 / 220 / 226, threaded, quick-connect, flange, tie-rod, custom
• Media Options: Sintered metal mesh laminate or sintered metal fiber media

All technical data are based on laboratory conditions. Final selection should be based on actual process requirements.

Why Pleated Design Matters

• A pleated element provides significantly higher filtration area than a standard cylindrical element
• Larger area enables higher flow capacity
• Higher flow allows smaller filter housings
• Smaller housings reduce system size and cost
• Lower pressure drop reduces energy consumption
• Extended service life reduces maintenance frequency

These advantages make pleated metal filters one of the most widely used configurations in industrial filtration systems.

Available Materials

• Stainless Steel: SS316L, SS304
• Optional Alloys: Available upon request for demanding environments

Typical Applications

• Liquid and gas purification
• High-temperature and high-pressure filtration
• Polymer processing and gel removal
• Chemical fiber filtration
• Chemical and petrochemical processing
• Solid particle separation and recovery
• Transpiration cooling systems
• Aerospace, marine, and industrial machinery applications
