Y Strainer

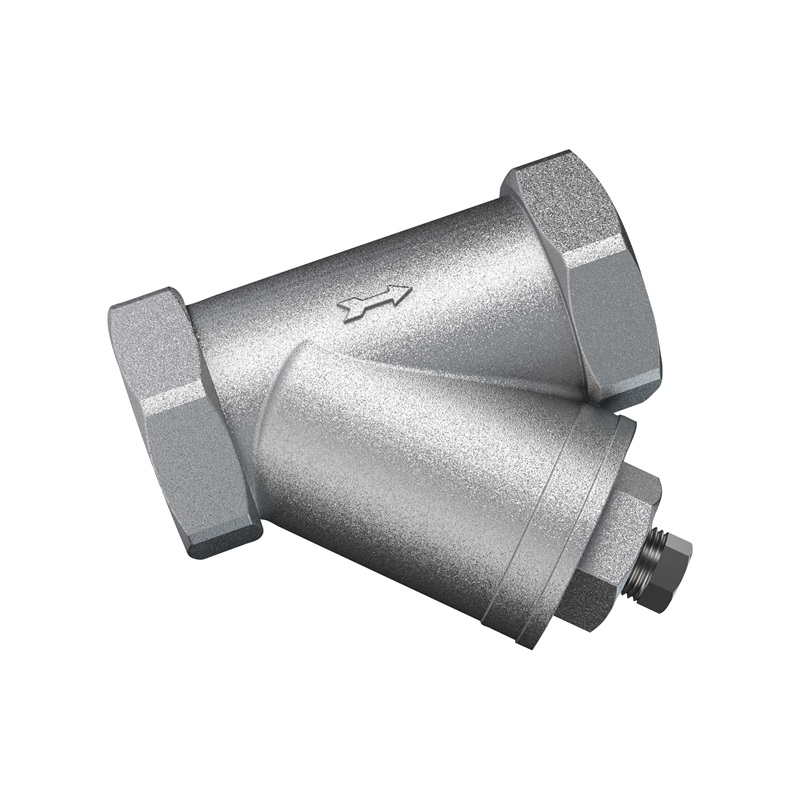

<h2>Product Overview</h2> <p> The CMI STY Series Y Strainer is designed to remove unwanted particles from liquid pipelines, protecting downstream equipment such as pumps, flow meters, control valves, and nozzles. </p> <p> The compact Y-type configuration allows effective filtration while maintaining minimal installation space, making it ideal for inline pipeline systems. </p> <p> Particles are retained by a removable stainless-steel screen, which can be easily cleaned or replaced during maintenance. </p> <p> CMI Y strainers are available in both cast and fabricated constructions, depending on size, pressure rating, and material requirements. Fabricated models can be designed and manufactured in accordance with ASME standards for enhanced mechanical strength and long-term reliability. </p> <h2>Key Features</h2> <ul> <li><strong>Compact Y-type design</strong><br> Ideal for installations with limited space and inline pipeline configurations.</li> <li><strong>Cast or fabricated construction</strong><br> Suitable for both small utility lines and large industrial pipelines.</li> <li><strong>Reliable equipment protection</strong><br> Prevents damage to pumps, valves, and instrumentation.</li> <li><strong>Removable filter screen</strong><br> Allows easy cleaning and maintenance.</li> <li><strong>Wide size range</strong><br> Available from 1/4" to 30".</li> <li><strong>Customizable design</strong><br> Material, mesh size, and connection type can be tailored to process requirements.</li> <li><strong>Optional ASME-compliant fabrication</strong><br> Ensures structural integrity for demanding applications.</li> </ul> <h2>Technical Specifications</h2> <table style="width:100%; border-collapse:collapse;"> <tr> <th style="padding:10px; text-align:left;">Parameter</th> <th style="padding:10px; text-align:left;">Details</th> </tr> <tr><td style="padding:8px;">Size Range</td><td>1/4" – 30"</td></tr> <tr><td style="padding:8px;">Material Options</td><td>Carbon Steel / SS304 / SS316</td></tr> <tr><td style="padding:8px;">Connection Types</td><td>BSP / FNPT / ANSI / DIN / JIS</td></tr> <tr><td style="padding:8px;">Pressure Rating</td><td>10 / 16 / 25 bar</td></tr> <tr><td style="padding:8px;">Screen Material</td><td>SS304 / SS316</td></tr> <tr><td style="padding:8px;">Mesh Range</td><td>25 – 400 mesh</td></tr> <tr><td style="padding:8px;">Perforation Range</td><td>2 – 10 mm</td></tr> </table> <h2>Applications</h2> <p> CMI Y strainers are widely used for pipeline protection and coarse filtration in industrial systems: </p> <ul> <li>Pump protection</li> <li>Flow meters and instrumentation protection</li> <li>HVAC and chilled water systems</li> <li>Petrochemical and refinery pipelines</li> <li>Water treatment and process water systems</li> <li>Fire-fighting pipelines</li> <li>Boiler feedwater systems</li> <li>Industrial utilities</li> <li>Irrigation and agricultural systems</li> </ul> <p> Y strainers are typically installed upstream of sensitive equipment to prevent clogging, wear, and operational damage. </p> <h2>Customization Options</h2> <ul> <li>Special alloys (Duplex, Super Duplex, Hastelloy)</li> <li>High-pressure design</li> <li>Quick-opening cover</li> <li>Magnetic inserts for ferrous particle removal</li> <li>Internal coatings (epoxy or rubber lining)</li> <li>High-temperature resistant screens</li> </ul> <h2>Why Choose Y Strainer for Pipeline Protection?</h2> <table style="width:100%; border-collapse:collapse;"> <tr> <th style="padding:10px; text-align:left;">Feature</th> <th style="padding:10px; text-align:left;">Y Strainer</th> </tr> <tr><td style="padding:8px;">Structure</td><td>Compact Y-type inline design</td></tr> <tr><td style="padding:8px;">Installation</td><td>Inline pipeline installation</td></tr> <tr><td style="padding:8px;">Footprint</td><td>Very compact</td></tr> <tr><td style="padding:8px;">Maintenance</td><td>Screen removal and cleaning</td></tr> <tr><td style="padding:8px;">Best For</td><td>Utility systems and equipment protection</td></tr> </table> <p><strong> Y strainers are a simple and reliable solution for protecting pipeline equipment in compact systems and utility applications. </strong></p> <h2>Related Products</h2> <ul> <li>Basket Strainer</li> <li>Industrial Basket Filter Housing</li> <li>Bag Filter Housing</li> <li>Cartridge Filter Housing</li> </ul>
